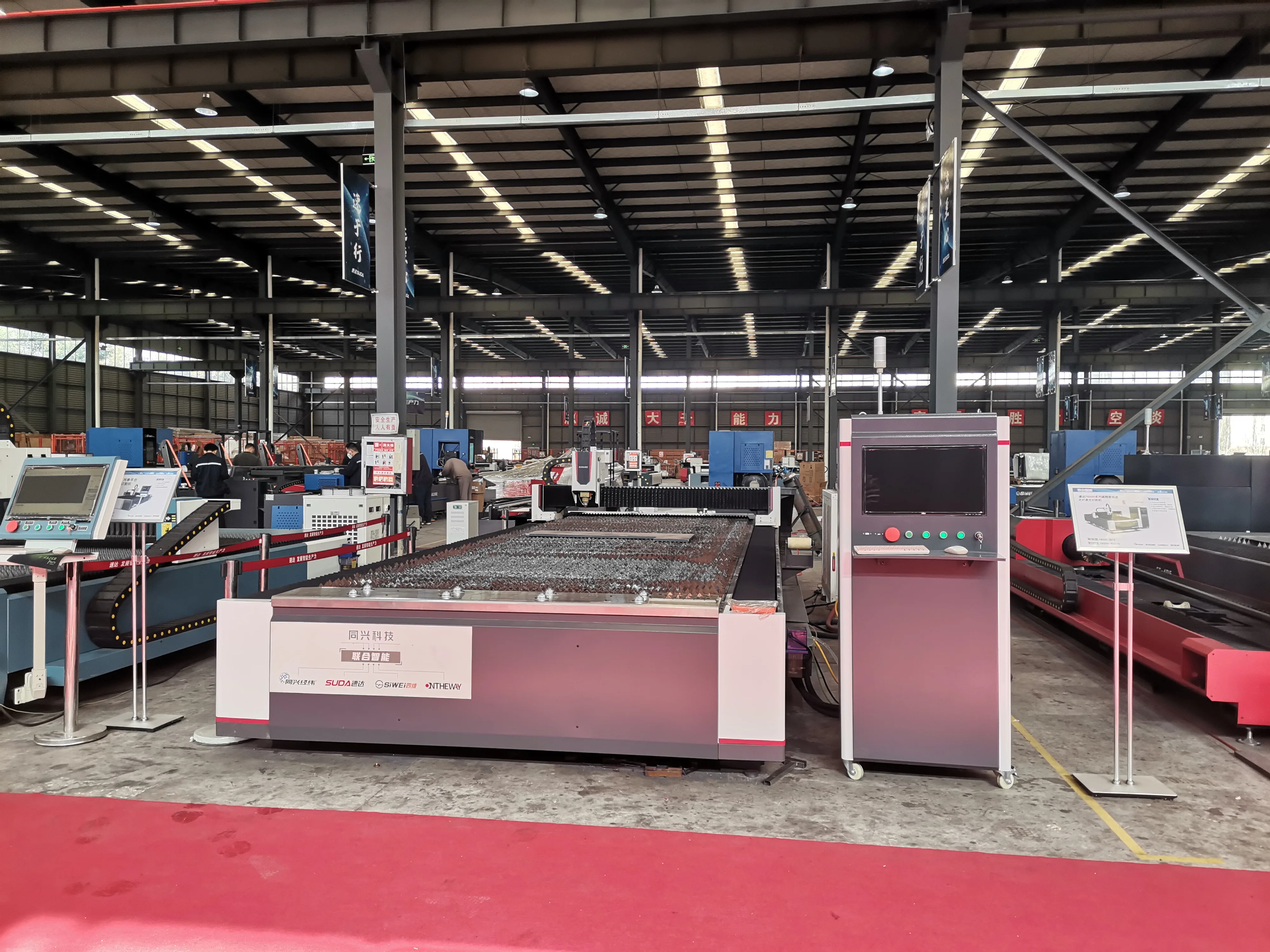

F6000 Laser Cutting Machine
1500W-12000WFeatures:
Product Name: SUDA F6000 CNC Laser Cutting Machine
Working Area: 3000mm*1500mm or customizable
Raycus / Max / SUDA laser source
Heavy-duty machine body with tempering treatment
Industrial independent cabinet
CYPCUT / Weihong / Raytools CNC Laser control system
WSX / Raytools laser cutting head
Japan SMG linear rail
Korea Leadrack rack
X/Y axis adopt grinding rack, Z axis adopts grinding screw
X/Y/Z axis adopt HCFA / INOVANCE AC servo driver system
Reposition accuracy: ±0.05mm
Features: high power, high speed metal laser cutting machine
SKU: F6000
Description
Parameter
| Model | F6000 |
| Working Area | 1500×3000mm Customizable |
| Laser Media | Fiber Laser |
| Power | 1500-25000W |
| Min. Route Width | 0.01mm |
| Reposition Accuracy | ±0.05mm |
| Voltage | 220/380V 50-60Hz |
| Linear Rail | Taiwan Lapping / Japan THK |
| Reducer | Japan Shimpo |
| Laser Source | Raycus/Max/IPG (optional) |
| Cutting Head | WSX/Raytools |
| Servo System | France Schneider |
| Control System | Cypcut/Weihong NC Studio |
